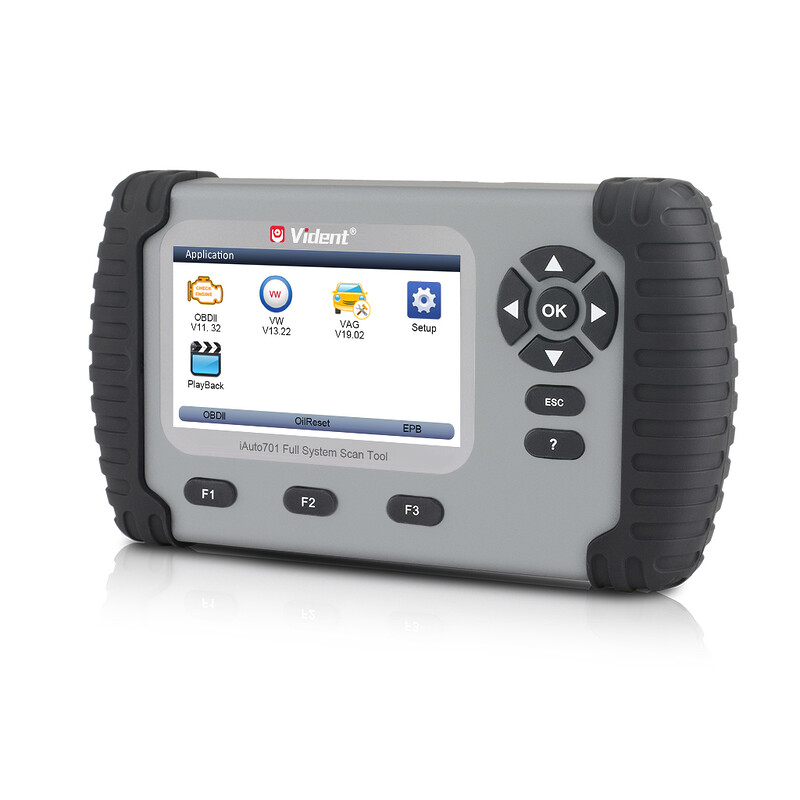

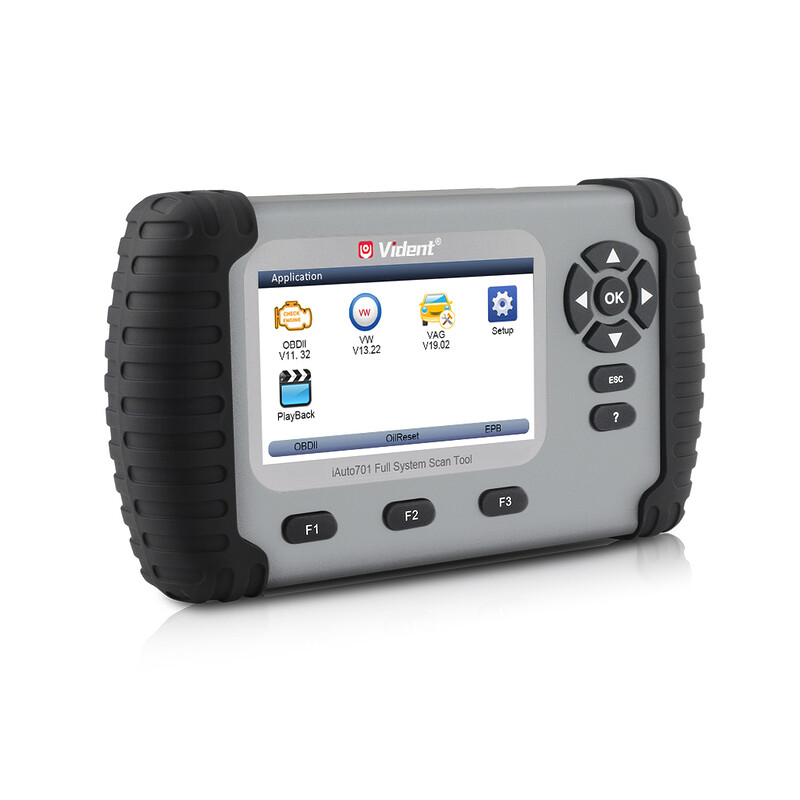

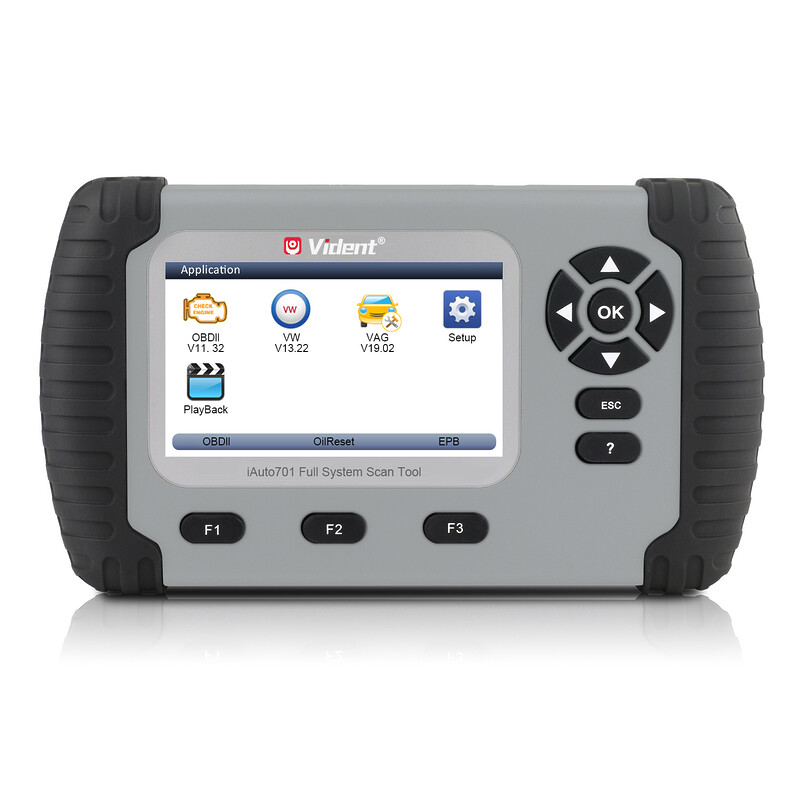

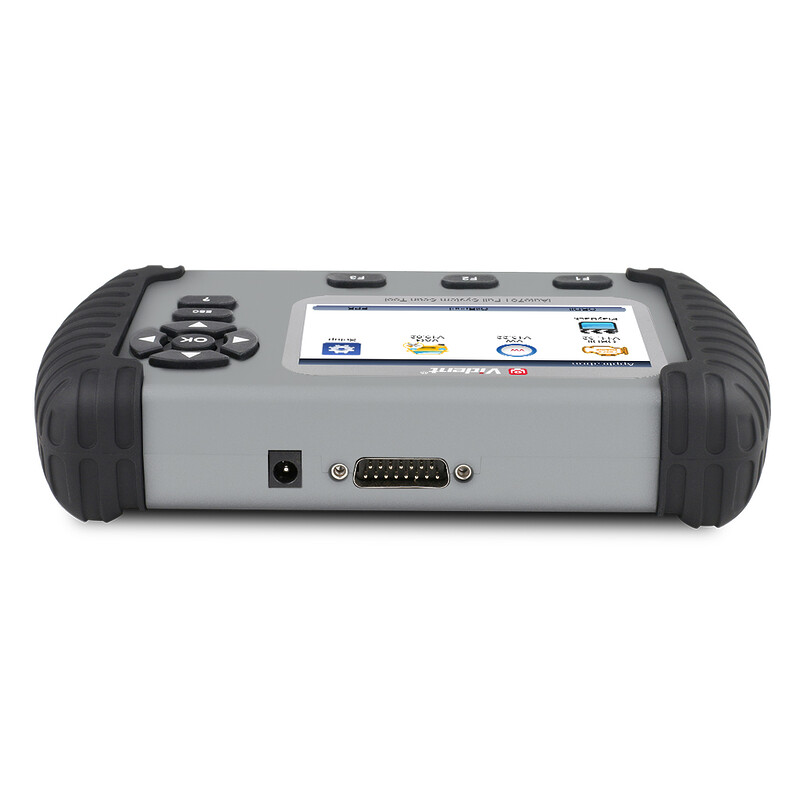

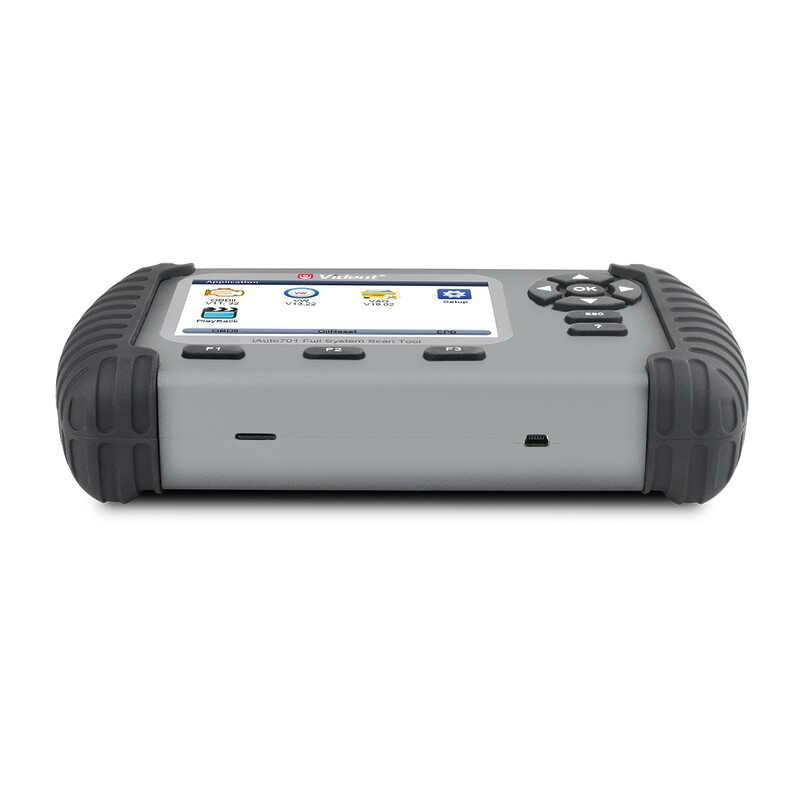

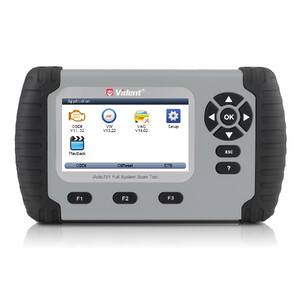

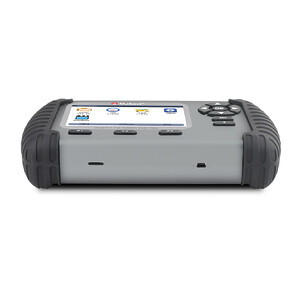

iAuto701 Full System Scan Tool

iAuto701 is an upgraded full system single make scan tool delivers OE-level diagnosis of multi-systems.In contrast with best seller iLink400, iAuto701 has bigger display and more steady and poweful physical parts to enhance the experiences not only in diagnosis operation but also in more car makes added.Besides basic functions such as read/erase codes and live data, iAuto701 is capable of advanced functions such as actuation, adaptation and programming. In addition, it lets you access the most commonly required service features such as OIL,EPB,ABS bleed,DPF,TBA(TPS), SAS, BRT, TPMS,AFS (Adaptive Front Lighting System), Immobilizer, Injector coding,Gear learning, Suspension match,Sunroof Initialization,Gearbox match,Ajuste Fuel.
Not available

0.00

Online store vindetauto

Display: 4.3” Backlit, 480*272 TFT color screen
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Power: 8 to 18 V provided via vehicle
Supported Protocols: ISO9141-2, ISO14230-2, ISO15765-4, K/L lines, Double K Line SAE-J1850 VPW, SAE-J1850PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Single wire CAN, KW81, KW82, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, Fault-Tolerant CAN.
Tool Dimensions: 212*117*47mm (L*W*H)
Blow mold carrying case  330*228*77mm (L*W*H)
Weight: 1.4KG
QTY/CTN: 25SETS
Weight/CTN: 35KG
CTN MEAS:64.2*51.8*36cm

iAuto701 Scan tool

Diagnostic cable

User’s Guide

Memory Card

Password Paper

Blow mold carrying case
