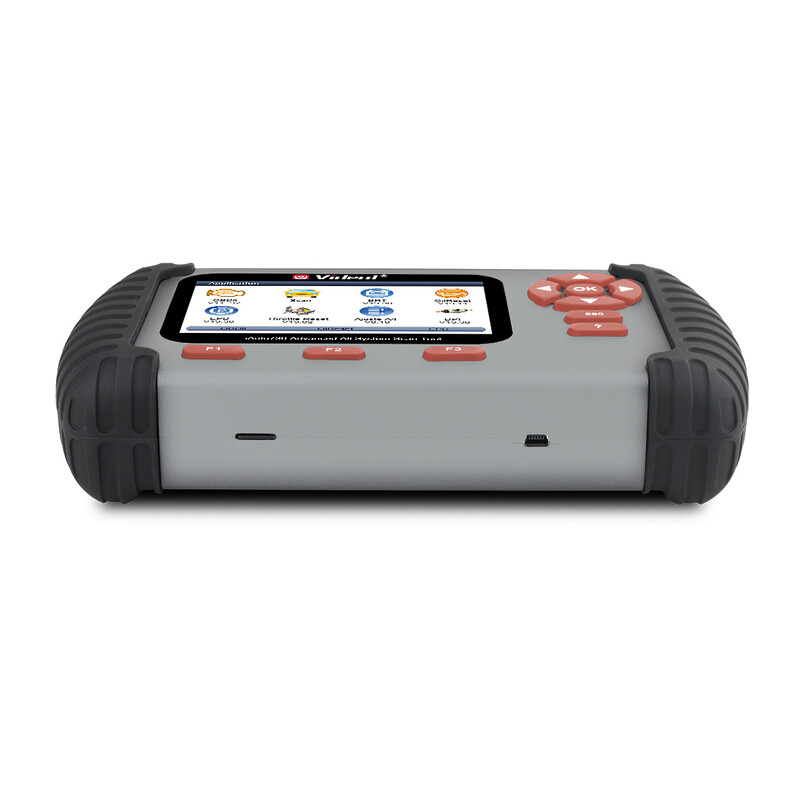

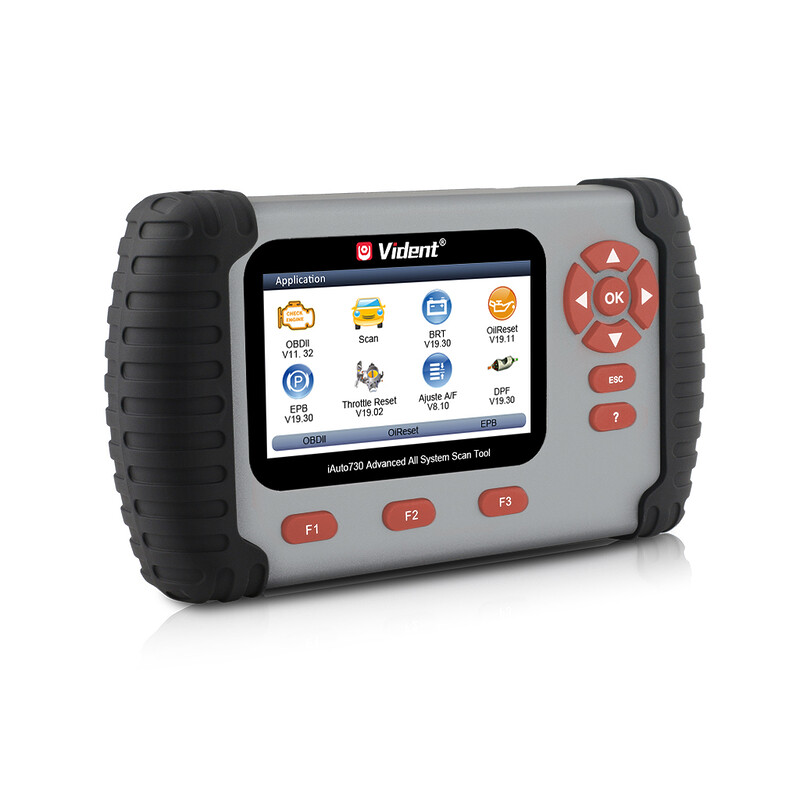

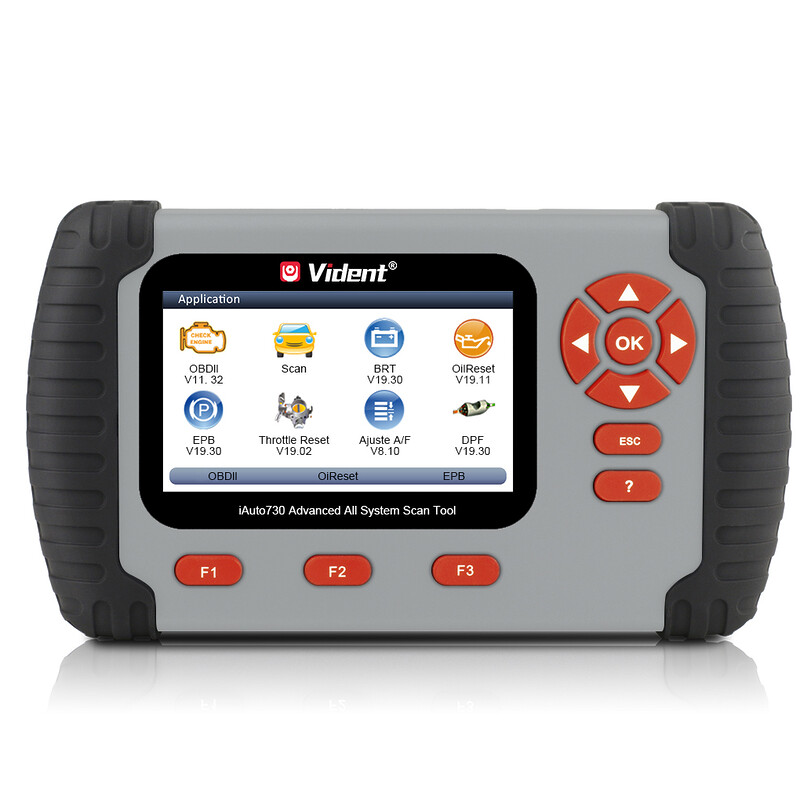

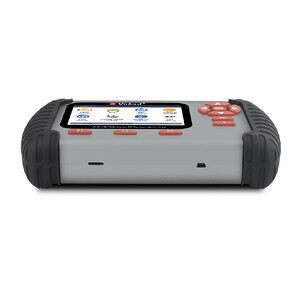

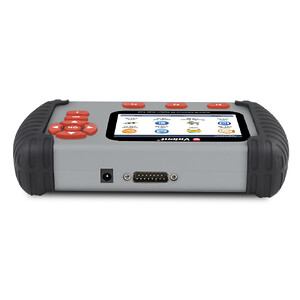

iAuto730 Advanced All System Scan Tool
iAuto730 is a professional level diagnostic handheld tool, offering comprehensive system coverage for a vast array of car manufacturers. Featured with all system diagnosis including engine, transmission, ABS, Airbag, instrument, steering wheel, etc., and the most commonly required service featuresOIL,EPB,ABS bleed,DPF,TBA(TPS), SAS, BRT, TPMS,AFS (Adaptive Front Lighting System), Immobilizer, Injector coding,Gear learning, Suspension match, Sunroof Initialization, Gearbox match,Odometer,Ajuste Fuel.iAuto730 is built to take your diagnostic experience to a new level.
Not available
| Display: 4.3” Backlit, 480*272 TFT color screen | |||
| Operating Temperature: 0 to 60°C (32 to 140°F) | |||
| Storage Temperature: -20 to 70°C (-4 to 158°F) | |||
| Power: 8 to 18 V provided via vehicle | |||
| Supported Protocols: ISO9141-2, ISO14230-2, ISO15765-4, K/L lines, Double K Line SAE-J1850 VPW, SAE-J1850PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Single wire CAN, KW81, KW82, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, Fault-Tolerant CAN. | |||
| Tool Dimensions: 212*117*47mm (L*W*H) | |||
| Weight: 1.4KG | |||
| QTY/CTN: 24SETS | |||
| Weight/CTN: 34KG | |||
| CTN MEAS:69*52*37cm |
|
iAuto730 Scanner Diagnostic cable User Manual Memory Card Password Paper Card Reader Tool Case |
